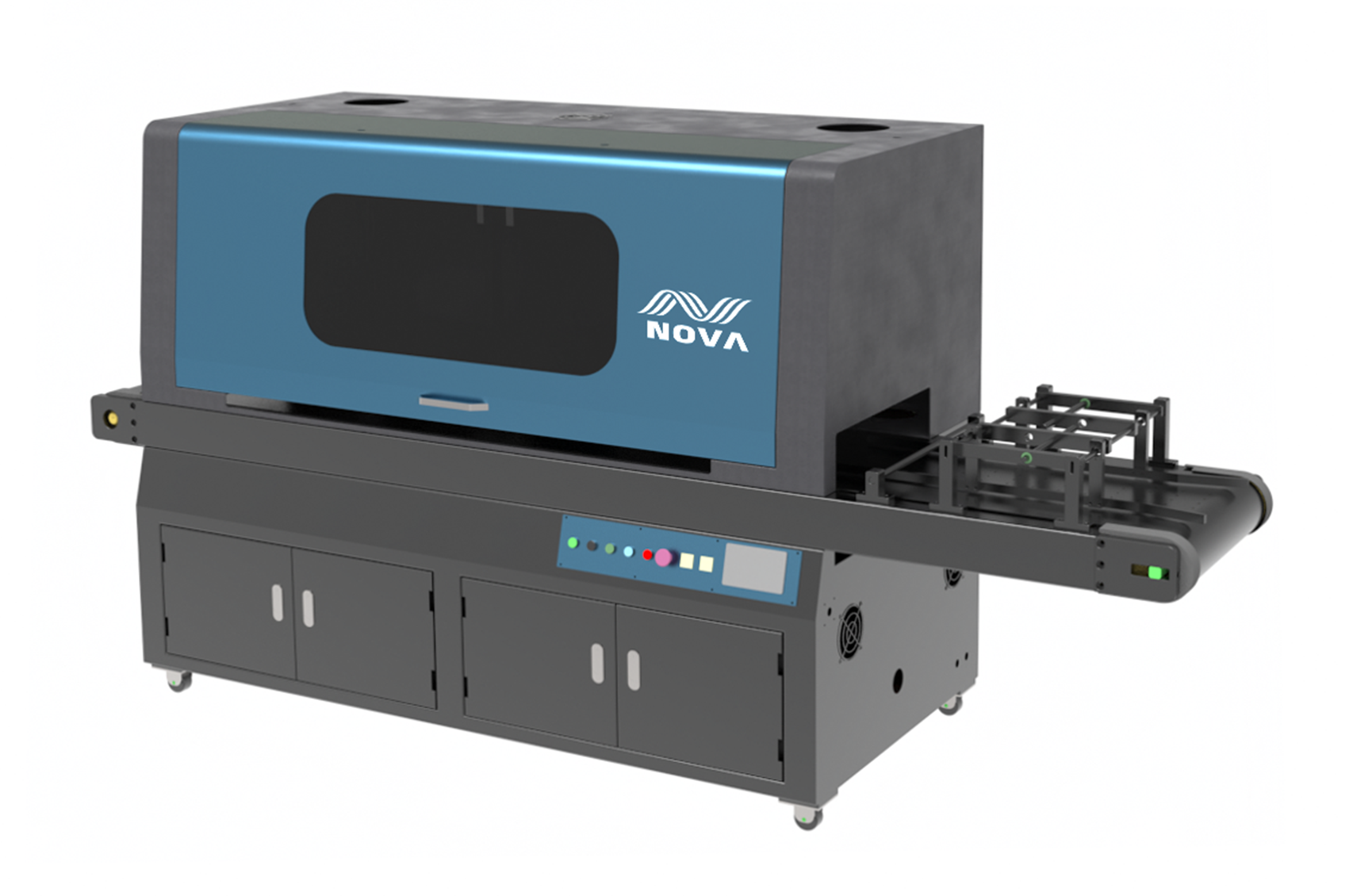

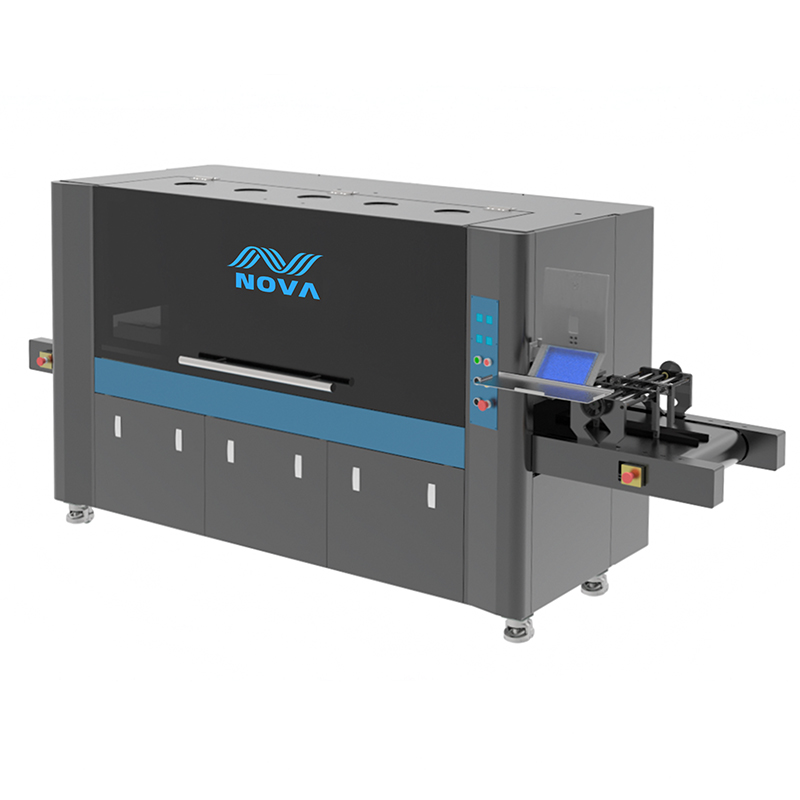

ULTRA Single Pass UV Inkjet Printer Highlight Features: • Servo-Driven Integrated Carriage • Single Pass Full Color Inkjet Technology • High Performance RICOH Gen6 Series Print Heads • Negative Pressure Ink Supply System • Inline Plasma Pretreatment Optional • UV LED Curing for Pinning & Full Cure • Automatic Print Head Protection System • Print Head Maintenance System • Printing Infrared Sensor • Z-Axis Servo Control for Height Adjustment • Servo-Driven Conveyor Feed System • Adjustable Conveyor Guide Rails • White Ink Circulation System • PLC Control. Touch Screen Display • All Servo-Driven Independent Carriage Optional |
Application:

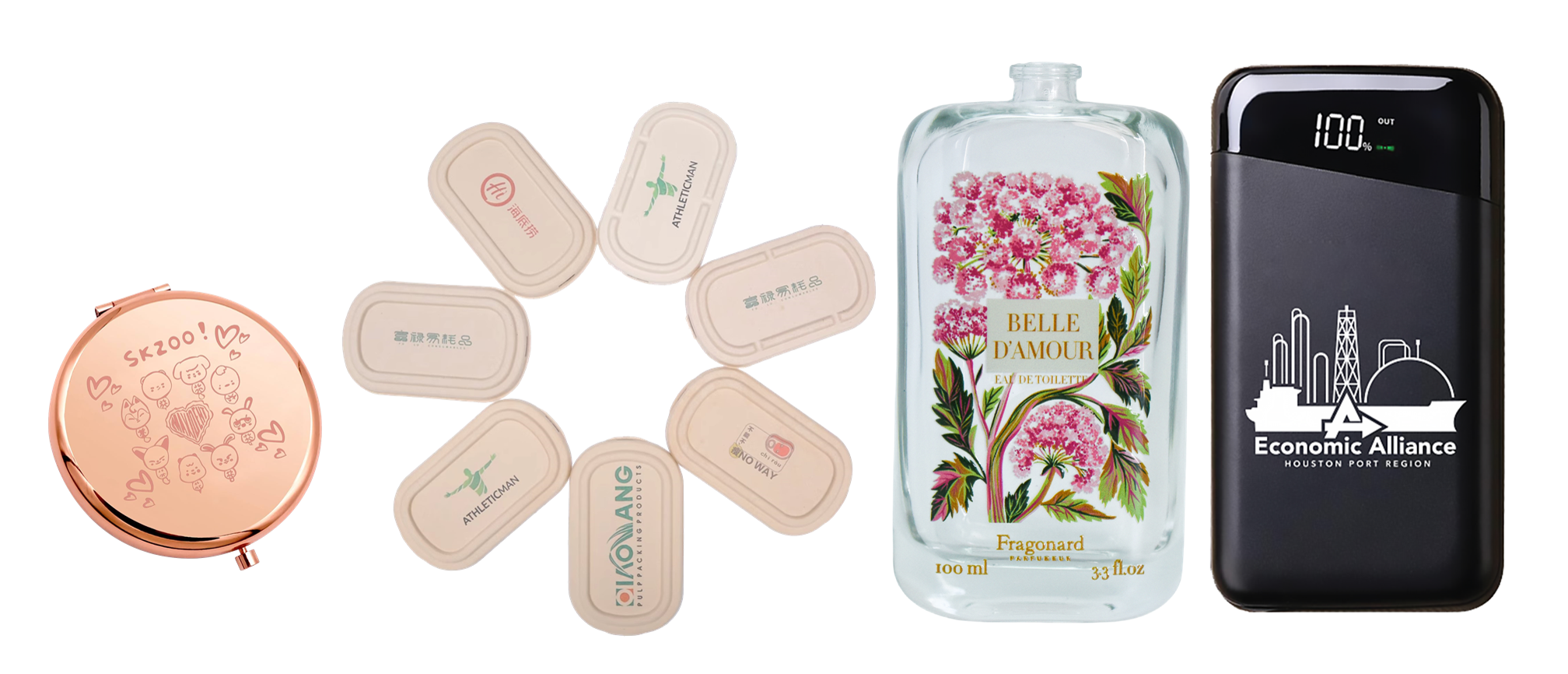

Suitable for plastic, glass, acrylic, wood, metal material Great fit for various packaging products & promotional items printing Work on metal signage, paper bags, paper box, phone case, leather, KT boards, toys, egg box, keychains, cards, bottle caps, metal badge, envelops, USB flash drive, power bank, small mirror, lipstick tubes, cosmetics bottles, eye shadow boxes, etc.
Technical Specification
| ITEM | ULTRA-5 (Gen6) | ULTRA-5S (Gen6) |
| Print Head | Ricoh MH5320 (Gen6) Industrial Piezo Print Head x 5 | |
| Print Technology | Piezoelectric Inkjet, Variable Dot Printing, Grayscale Technology | |
| Droplet Volume | 5-15pl Variable | |
| Ink Configuration | W + CMYK (Integrated Carriage) | W + C + M + Y + K (Independent Carriage x 5) |
| Ink Type | UV Curable Ink | |
| Ink Cartridge Capacity | 3 Liters | |
| Ink Supply System | Negative Pressure System (NPS) with Automatic Ink Supply | |
| Print Resolution | 600 x 600 dpi | |
| Print Speed | Up to 50 m/min | |
| Standard Print Width | 54 mm (108 / 162 / 216 mm per request) | |
| Maximum Object Length | No Limitations | |
| Maximum Object Height | 100 mm | |
| High Dropping Range | 2-15 mm | |
| RIP Software | FlexiPRINT | |
| Image Format | BMP, JPG/JPEG, TIFF, PDF, EPS, PNG, SVG | |
| Connectivity | Gigabit Ethernet Interface | |
| UV Method | UV-LED Pinning Lamps with air cooling system | |
| UV-LED Full Cure with water cooling system | ||
| Conveyor Width | 500 mm | |
| Power Supply | Single-phase AC110/220V, 50/60Hz | |
| Operational Environment | Temperature: 18–300C. Humidity: 40–80% Rh (Non condensing) | |
| Dimensions (W×D×H) | 3,000 x 1,000 x 1,600 mm | 3,450 x 1,000 x 1,600 mm |
| Approximate Weight Crated | 850 kgs | 900 kgs |
